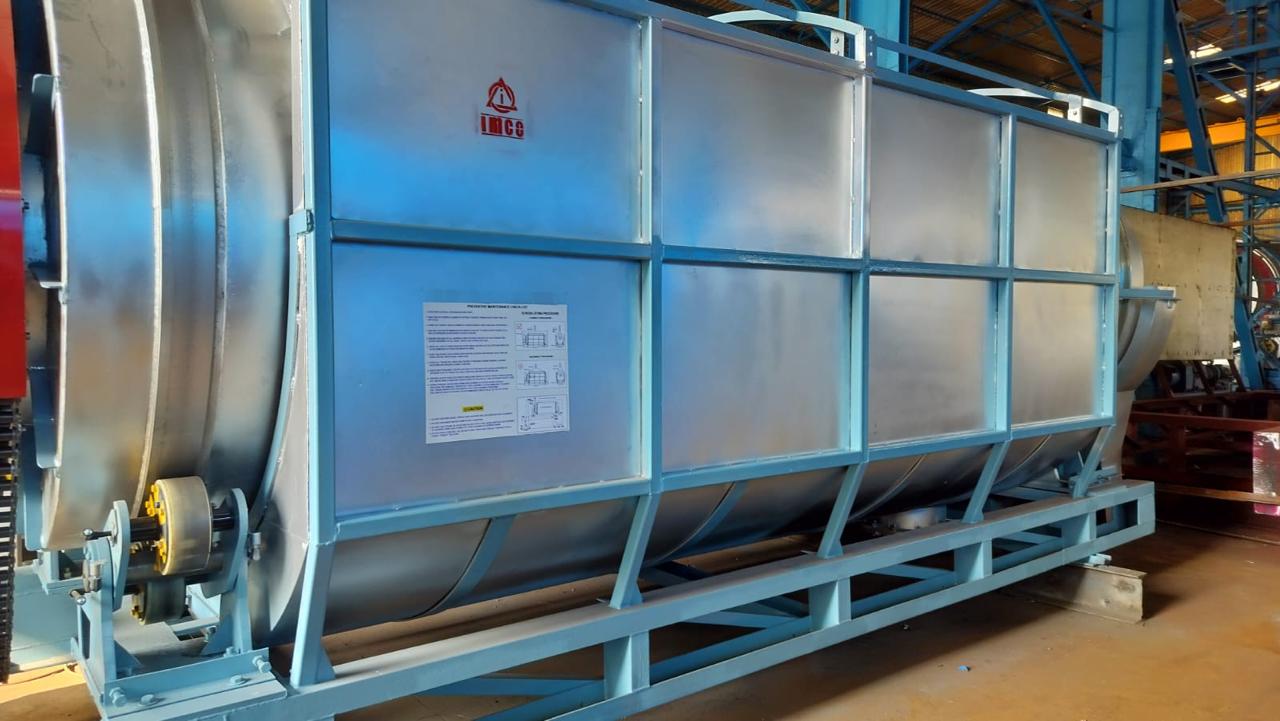

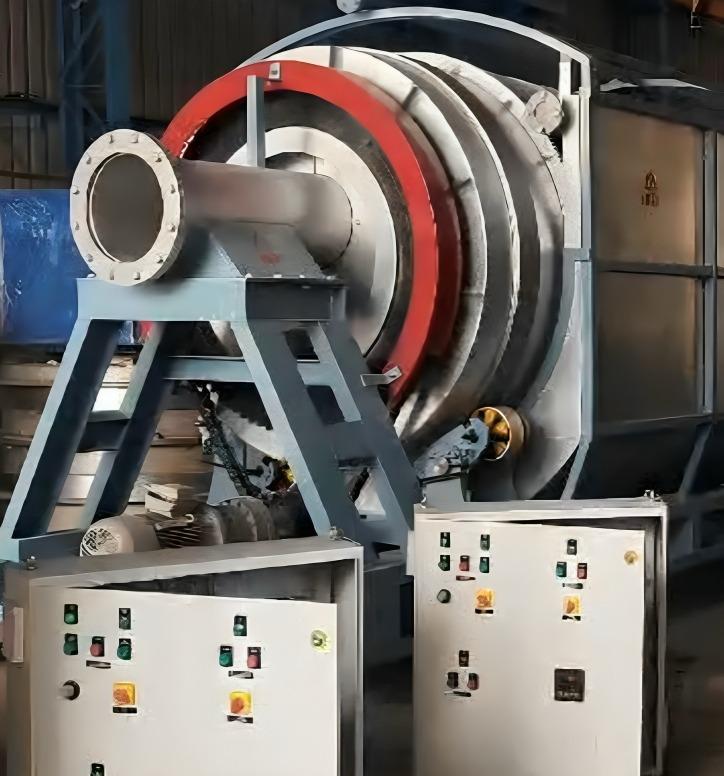

Zuper ROTARY JUICE SCREEN
Advanced Screening for Superior Juice Quality
Overview
IMCO ALLOYS offers an advanced Rotary Juice Screen solution engineered for maximum juice recovery and purity. The segmented and bolted screen drum design ensures a strong mechanical structure, easy transport, and efficient operation for mills up to 10,000 TCD.
Technical Specifications:
- Wedge Wire SS304 Screen – 0.35 mm, 0.45 mm, and 0.5 mm openings available
- Screen Length: up to 6.0 meters
- Diameter Range: 1.2 m to 2.4 m
- Two-Stage Screening: Removes up to 90% bagacillio (200–300 micron)
How It Works:
Mill juice containing bagasse particles enters the rotary drum from the drive end. As the juice flows tangentially across the rotating screen, impurities are separated while clean juice passes through. Retained solids are discharged continuously via a screw conveyor or chute.
Advantages
- High screening efficiency and lower bagasse moisture
- Reduced bagacillio leading to cleaner juice and less heater/evaporator clogging
- Two-stage screening can reduce mud cake by 25–40%
- Lower suspended impurities in raw or mill white sugar
- Advanced automation with timer-based hot water and steam wash system
- Efficient Drive System with planetary gear box
- Modular, bolted drum design for easy shipping and maintenance
Performance:
A single rotary screen assembly (Ø2.2 m × 6.0 m length) can handle 9000–10,000 TCD, enabling efficient two-stage screening even under space constraints.
